⚓ Boat Anchor Chain Length Calculator
Calculate the ideal anchor chain length, scope ratio, and rode requirements for safe anchoring
Basic Grade
Standard Anchor
Offshore Use
High Strength
Fair Weather
Overnight / Moderate
Storm Conditions
w/ Rope Rode
| Grade & Size | WLL (lb) | Break Load (lb) | Weight (lb/ft) | Weight (kg/m) | Suitable Boat |
|---|---|---|---|---|---|
| G30 – 1/4 in | 1,300 | 5,200 | 0.69 | 1.03 | Up to 20 ft |
| G40 – 1/4 in | 1,700 | 6,800 | 0.63 | 0.94 | Up to 22 ft |
| G40 – 5/16 in | 2,600 | 10,400 | 0.97 | 1.44 | Up to 30 ft |
| G40 – 3/8 in | 3,900 | 15,600 | 1.42 | 2.11 | Up to 38 ft |
| G43 – 5/16 in | 3,200 | 12,800 | 0.97 | 1.44 | Up to 35 ft |
| G43 – 3/8 in | 4,700 | 18,800 | 1.42 | 2.11 | Up to 45 ft |
| G43 – 1/2 in | 8,600 | 34,400 | 2.56 | 3.81 | 45–65 ft |
| G70 – 3/8 in | 6,600 | 26,400 | 1.42 | 2.11 | Up to 50 ft |
| Condition | Wind Speed | Min Scope | Rec Scope (Rope) | Rec Scope (Chain) | Notes |
|---|---|---|---|---|---|
| Very Calm / Harbor | <10 kt | 3:1 | 4:1 | 3:1 | Short stops only |
| Fair Weather | 10–15 kt | 4:1 | 5:1 | 4:1 | Daytime anchoring |
| Moderate Wind | 15–25 kt | 5:1 | 7:1 | 5:1 | Afternoon storms possible |
| Overnight Stay | Varies | 5:1 | 7:1 | 6:1 | Always use min 7:1 rope |
| Heavy Weather | 25–40 kt | 7:1 | 10:1 | 7:1 | Two anchors recommended |
| Storm / Gale | >40 kt | 10:1 | 12:1 | 10:1 | Max available scope |
| Boat Type & Length | Displacement | Min Chain Size | Rec Chain Size | All-Chain Length | Combo Chain Leader |
|---|---|---|---|---|---|
| Dinghy / Kayak (<14 ft) | <500 lb | 1/4 in G30 | 1/4 in G40 | 30–50 ft | 10 ft |
| Small Powerboat (14–22 ft) | 500–3,000 lb | 1/4 in G40 | 5/16 in G40 | 75–150 ft | 15–20 ft |
| Medium Powerboat (22–30 ft) | 3,000–8,000 lb | 5/16 in G40 | 3/8 in G40 | 100–200 ft | 20–30 ft |
| Sailboat / Cruiser (30–40 ft) | 8,000–18,000 lb | 3/8 in G40 | 3/8 in G43 | 150–250 ft | 30–40 ft |
| Large Cruiser (40–55 ft) | 18,000–40,000 lb | 3/8 in G43 | 1/2 in G43 | 200–300 ft | 40–60 ft |
| Large Yacht / Trawler (>55 ft) | >40,000 lb | 1/2 in G43 | 5/8 in G43 | 250–400 ft | 50–75 ft |
Choosing the right Length of Boat Anchor Chain is not easy because there are genuinely different opinions between boaters, and everything depends on your ship, on the place where you anchor and on the conditions that you must face. Here said value to recall some good advice.
One commonly hears mention the rule one-for-one: one foot of chain for every foot of Length of the boat. Like this, for a 24-foot ship one would use around 24 feet of chain. Even so not each agrees with that, especially if one has a smaller ship.

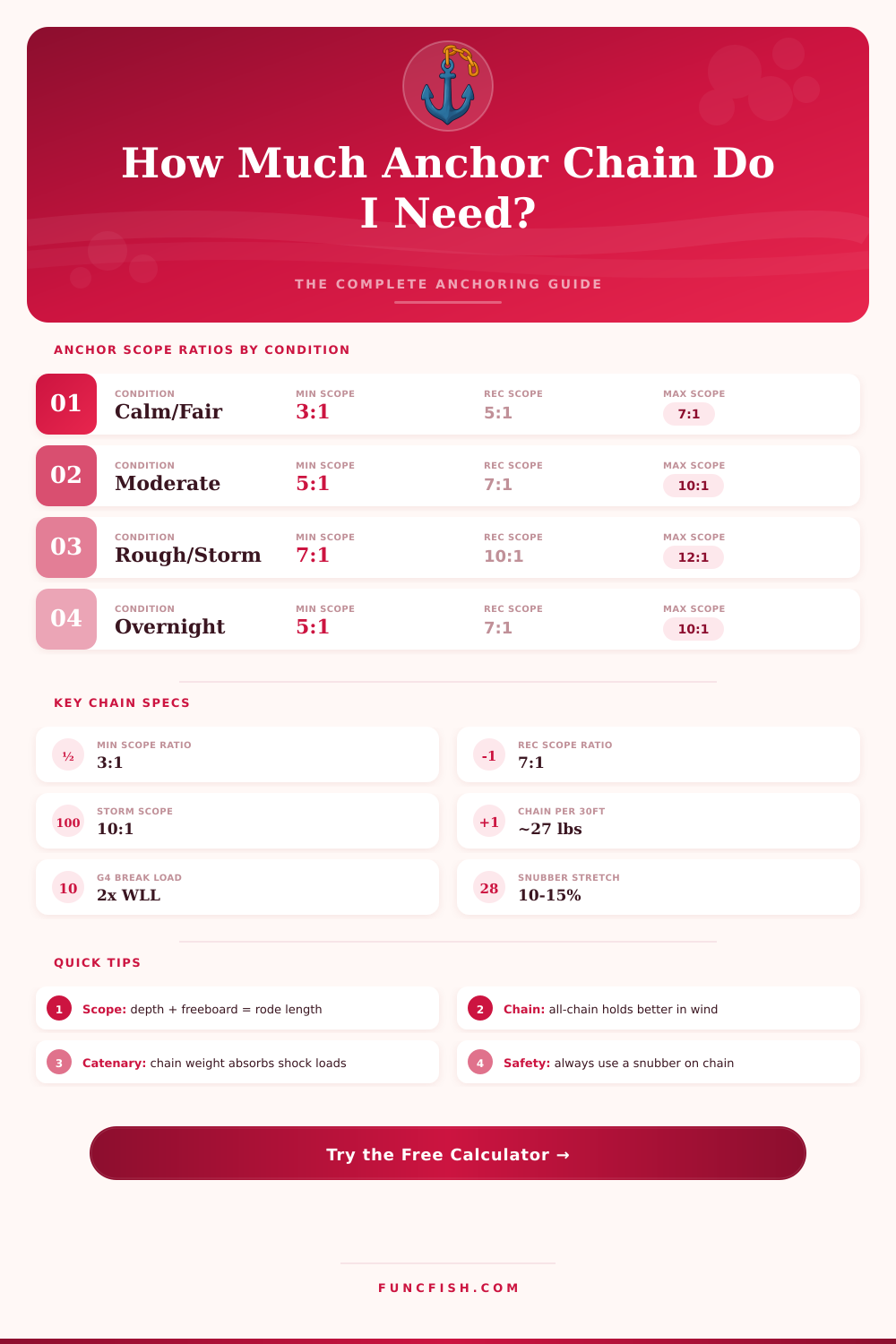

How Much Anchor Chain Do I Need?
Boaters with ships under 24 feet suggest, that even 3 to 6 feet of chain work well, if the anchor is good. For the heavy cases one casts 10 to 20 feet, according to the place of anchor and the kind of fishing or anchor here.
The whole anchor line, that is the rope and chain together, should have between four and seven times the depth where one anchors. In busy anchorage even so shorter line is more practical, because the boat requires space to swing. The proportion 7:1 seems the standard: seven feet of whole line for every foot of depth.
If the weather holds and your anchor is good, one can satisfy himself with 5:1.
Chain genuinely helps here. It weighs the line down, so everything rests flat on the bottom, what keeps the pull on the anchor horizontal, really that helps it dig in. Also, the chain protects the rope against cutting from rocks, stones and coral below.
Long, thinner chain can absorb shock more well, but one must cast enough line so that that works.
Big ships follow entirely other rules. Ocean ships usually cast at most about 13 shots of chain, with every shot lasting 90 feet. That reaches around 1 170 feet in whole.
Thousand feet of chain weigh much more then the most many anchors. The cable ropes on big ships normally run between two and two and half times the Length of the ship. Anchoring in deep water becomes too dangerous for them, they mostly do not go past 60 metres, or their captains consider that risky.
The depth of the water changes everything. Five feet on a calm day? Easy raise.
But 30 feet with flow and other boats moving around mean, that one must cast much more of chain and use bigger proportion. Harsh conditions with rough bottom can force you use 20 feet of heavy chain even on a smaller ship. I experienced setups with 400 feet of line and 25 feet of chain for deep sea fishing in 200-foot depths, although that was in gentle conditions.
There are now genuinely free online calculators that estimate your need of chain according to the size of theboat and predictions about the weather.
