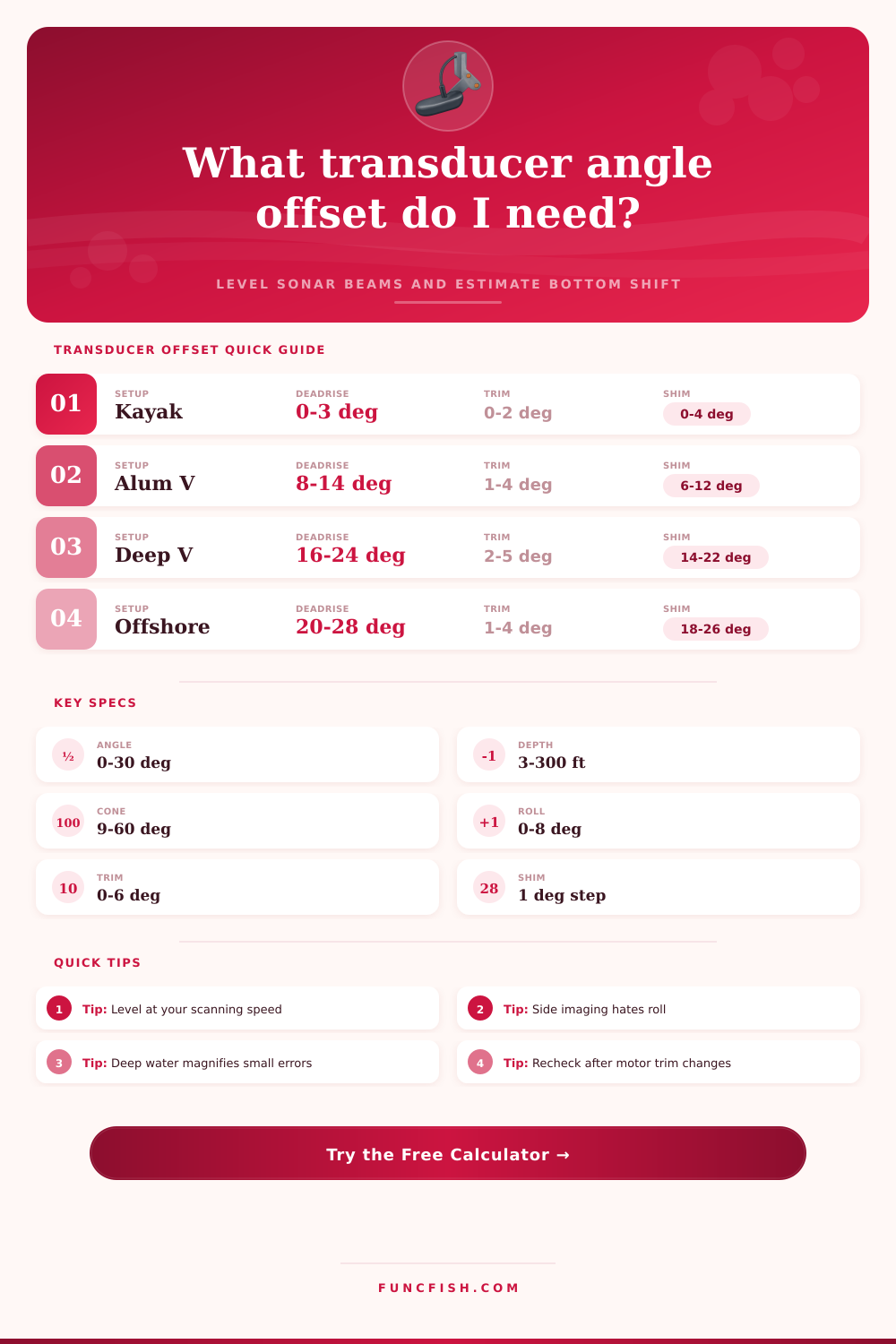

Estimate the wedge, shim, and sonar-footprint offset needed to keep a fish finder transducer beam vertical when hull deadrise, running trim, side roll, and target depth are working against it.

📍Transducer mounting presets

Mounting geometry inputs

Offset and beam alignment results

Recommended shim Rounded wedge angle
Deadrise and roll compensation
Bottom beam offset 0 ft Horizontal error at target depth
tan(error) × depth
Footprint width 0 ft Estimated cone or fan footprint
2 × depth × tan(beam / 2)
Alignment status Check Compared with selected tolerance
Residual angle after shim

Formula breakdown

📊Transducer beam reference grid

Narrow CHIRP

Tight bottom lock for deep water, ledges, and offshore marks where small tilt errors move the return a long way.

16°Dual CHIRP

Common fish finder cone for mixed freshwater work, balancing target separation and enough coverage for trolling passes.

35°Down imaging

Sharper vertical picture of brush, shell, grass, and rock; alignment matters because the slice is thin fore and aft.

50°Side imaging

Wide scanning fan that quickly shows roll, deadrise, or bracket lean as one side brighter than the other.

20°Live sonar

Forward-facing beams need a level reference so casts land where the screen says the target is sitting.

60°Wide 2D

Forgiving for depth reading in shallow water but less precise when marking fish tight to edges or small cover.

12°Tilted element

Thru-hull elements are sold by built-in tilt; choose the tilt closest to local deadrise for a vertical beam.

Practical target

A useful real-world alignment goal for many transom mounts after boat load, motor trim, and bracket flex are included.

🎣Gear and species comparison grid

Bass on docks

Side imaging or down imaging, 8-18 ft, low trim, strict roll control for clean shadows beside posts and brush.

Walleye on breaks

2D CHIRP plus down imaging, 20-45 ft, moderate deadrise, trim-compensated wedge for contour trolling.

Crappie brush piles

Wide 2D or down imaging, 8-25 ft, slow speed, level bracket to keep small cover centered under the boat.

Redfish flats

Side imaging in 3-10 ft, shallow running attitude, small errors show as uneven bottom brightness on long scans.

Salmon trolling

Narrow or dual CHIRP, 60-180 ft, deep-V hulls need accurate deadrise correction to keep bait schools aligned.

Offshore reef fish

Narrow CHIRP or tilted thru-hull, 100-300 ft, tiny angle errors can shift marks many feet across bottom.

Catfish channels

Wide 2D and side imaging, 15-55 ft, bracket should be level at idle and at slow graphing speeds.

Kayak structure scans

Side imaging arm, 4-20 ft, seat lean and gear load matter more than hull deadrise on many small craft.

📐Shim angle and beam offset tables

Mount typeTypical offset sourceBest measuring referencePractical shim step
Transom bracketDeadrise plus motor trimPad beside transducer at graphing speed1° to 2° wedge
Jack plate mountSetback turbulence and plate anglePlate face plus hull running attitude1° wedge and bracket slots
Kayak rail armSeat lean and gear balanceWaterline with angler seatedAdjustable arm angle
Pontoon log bracketBracket twist and loaded listDeck level versus waterlineThin side shim
Thru-hull pocketHull deadrise at boreLocal hull plane, not catalog deadriseTilted element selection
Trolling motorMotor barrel rotationShaft vertical and barrel levelClamp rotation marks
Residual angleShift at 20 ftShift at 50 ftShift at 120 ft
0.3 ft0.9 ft2.1 ft
0.7 ft1.7 ft4.2 ft
1.0 ft2.6 ft6.3 ft
1.7 ft4.4 ft10.5 ft
2.8 ft7.0 ft16.9 ft
12°4.3 ft10.6 ft25.5 ft
Beam familyBeam angle usedStrong use caseAlignment sensitivity
Narrow CHIRPDeep offshore, salmon, lake troutVery high
Dual CHIRP16°Walleye, catfish, mixed freshwaterHigh
Down imaging35°Brush, rock, weeds, bridge pilingsMedium high
Side imaging50°Docks, flats, ledges, long searchesVery high for roll
Live sonar20°Forward casting to visible targetsHigh
Wide 2D60°Shallow depth and general fish marksModerate
Fishing setupDepth bandSpeed to level forPreferred tolerance
Bass side imaging5-25 ft3-6 mph graphing passStrict, 1.5°
Walleye contour troll18-50 ft1.2-2.5 mph trollingNormal, 3°
Crappie brush search8-30 ftIdle or electric motorNormal, 3°
Offshore bottom lock90-300 ftCruise or slow searchStrict, 1.5°
Kayak scan3-20 ftPaddle drift or pedal speedNormal, 3°
Catfish channel edge15-60 ftIdle graphing passForgiving, 5°

🚩Mounting calculation tips

Measure where the transducer actually sits. Published hull deadrise is often taken near the transom centerline, while a starboard-side bracket may sit on a flatter or steeper patch.

Level for the speed you use to read fish. A boat that is perfect on the trailer can be several degrees different at idle, trolling speed, or side-imaging graphing speed.

So now it’s on, you mount the transducer. Turn on the sonar. You stare at a screen that says you are sitting on forty feet of water when your depth sounder clearly shows thirty. There’s a ledge with a fish over it. Except there isnt a ledge. Bottom structure appear smeared rather than clear. Bad geometry typicaly. Not bad gear.

Beam landing is determined by transducer angle. Running trim and hull deadrise will tilt beam, tilt throws casting position off several feet before you drop bait. Enter your boat shape and its relative position in the water into calculator and it does the math for you. You won’t have to guess whether that list is real or an optical illusion.

Why Sonar Angles Matter

There are three main angles to consider. The first is the inherent V of the hull where the transducer mounts, which is called deadrise. On some offshore boats the V will be twenty degrees here (deep V). Flat bottom bass boats has virtually zero deadrise. Next you have trim, changing whenever you apply power. Depending on how they are set up, most engine will lift the bow or push it down. This changes the base line angle. Third, the boat may roll, typicaly because of weight distribution or a current pushing one side higher than the other. Current pushes the transducer down on one side, especially with side imaging transducers. There are broad bands to port and starboard. Hull lean causes one side of the beam to be leaning into a narrower fan different than the other. That side looks taller and lets in more light. The other side drops off sharply. It paints a deceptive portrait of the underwater terrain.”

What good is proper input without understanding what the tool spits out? Knowing how far to shim the transducer (how much wedge to put beneath the transducer pad) comes from the suggested shim angle. It offsets hull angles and returns the beam vertical. But the other number that does some serious damage when not considered are the bottom beam offset number. This is how far off to one side the sonar cone actualy impacts the bottom compared to where you thought it was impacting. A couple degrees at shallow depth may mean a few inches difference in where the cone hits. Pull that down to a hundred feet underwater and now your fish marks is a few feet away from reality. Because the screen deceived you on where they were relative to boat, you may end up casting past the school of bait.

The other thing to pay attention to are footprint width. Wide 2D footprints has poor target separation on targets in deep water but they do cover more ground. So if you’re off on your angling, it doesn’t matter as much. You’ll still hit the spot on bottom that you wanted to scan. Narrow CHIRP beams separate targets incredibly well in deep water, but they miss an entire swath of bottom. Because the beam is so narrow you may not be even looking down on the bottom where you want to be. When you want to hit that particular rock pile, they arent great at locating exactly what’s there to drop a bait onto.

The chart on page illustrates this nicely. It details sensitivity based off both depth and beam type. This gives insight into why folks who chase offshore salmon care about being perfect on their beam angle. Guys on a pontoon idling around for crappie often don’t give a second thought to a few degrees of tilt, and they won’t lose much.

So how do we measure it? We mostly measure it by measuring the angle that really matters. Typically when manufacturers cite the hull deadrise they’re referencing a point near the centerline of the transom. Where do you mount a transducer? You probably would of not mounted it in the middle of the back of your boat. So on the starboard side for example, the local hull angle may be steeper or flatter than what’s listed on the spec sheet. It should also be measured at normal scan speed (when you’re out running) not when sitting tied to the dock. Under power, the boat sit differently. The wake raises the stern, and the current pushes the bow over. Weight also shifts, and all of this change the effective transducer face angle.

Shim selection is considered a do-it-once deal when folks set up their trailers. But it’s more like a changing part of getting ready to go boating. You might load it down with some gear and roll the boat out a little bit. You might change your motor trim to get on plane easier in windy conditions. All these thing will cause it to move out of alignment. Five minutes before a long offshore run or a big tournament, check that shim angle again. Save yourself hours of head scratching on the water.

Get that beam vertical and a hazy guess becomes a clear map. It is a small thing but it matters when you are looking for fish in open water.
