Fishing Rod Tip Top Size Calculator
Size a replacement or custom tip-top by tube ID, ring size, frame family, clearance fit, guide-train match, and line or leader knot clearance.
📌Scenario presets
⚙Tip-top sizing inputs
Tube size is the tube inside diameter expressed in 64ths of an inch.
Recommended tip-top sizing
Calculation breakdown
📊Tip-top data cards
Tube Sizing
Ring Matching
Clearance
Rod Loads

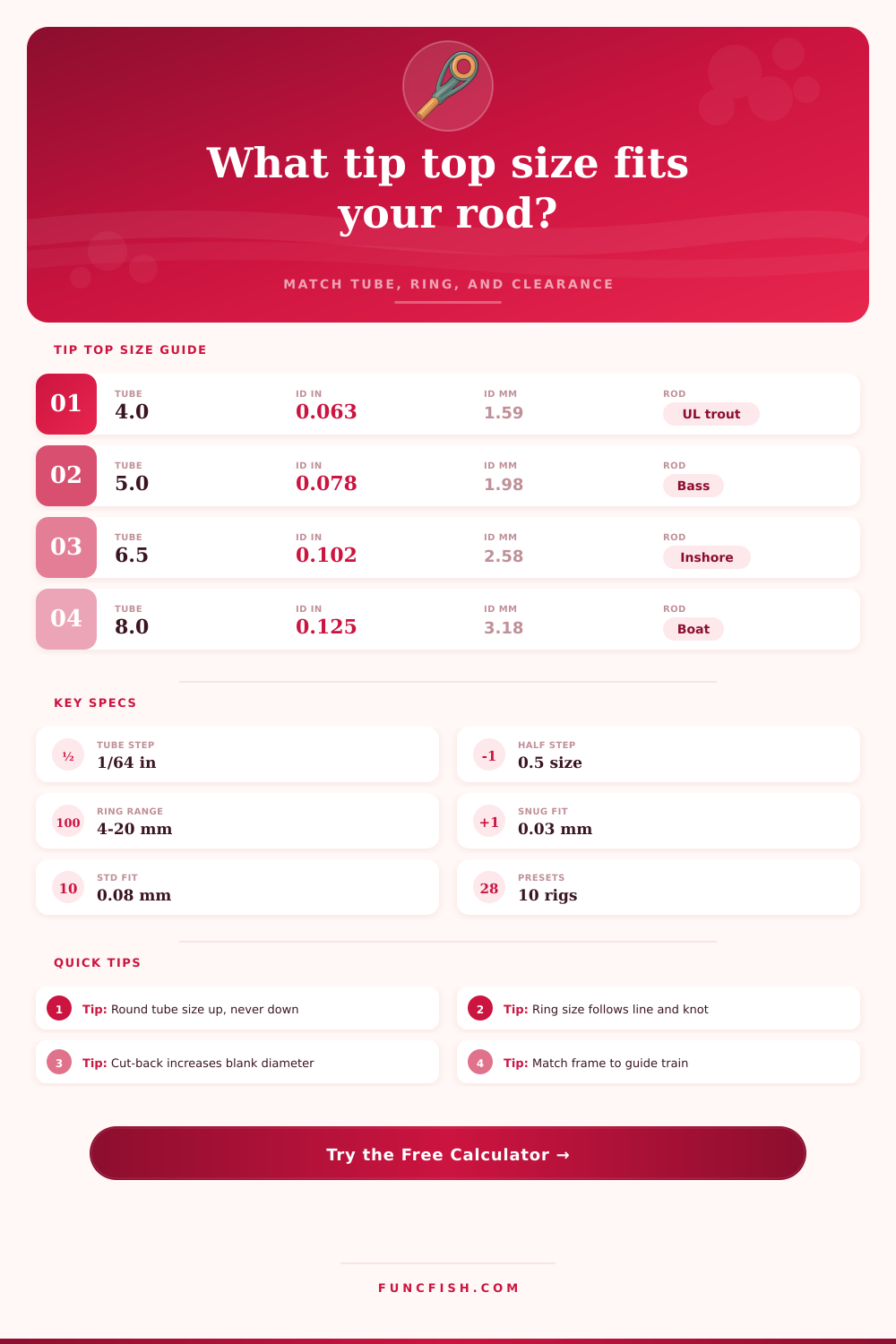

📐Tube size reference
| Tube size | Inside diameter | Metric equivalent | Common rod use | Notes |
|---|---|---|---|---|
| 3.5 | 0.0547 in | 1.39 mm | Very light fly, ice | Use only on very fine tips |
| 4.0 | 0.0625 in | 1.59 mm | Ultralight trout | Good for small ceramic or wire tops |
| 4.5 | 0.0703 in | 1.79 mm | Light spinning | Common on panfish rods |
| 5.0 | 0.0781 in | 1.98 mm | Bass spinning | Very common medium rod size |
| 5.5 | 0.0859 in | 2.18 mm | Bass casting | Works on many medium-heavy blanks |
| 6.0 | 0.0938 in | 2.38 mm | Inshore, catfish | Allows stronger frames |
| 6.5 | 0.1016 in | 2.58 mm | Heavy freshwater | Often paired with 6-8 mm rings |
| 7.0 | 0.1094 in | 2.78 mm | Surf, salmon | Check tube length and adhesive gap |
| 8.0 | 0.1250 in | 3.18 mm | Boat and trolling | Common for heavier composite tips |
| 10.0 | 0.1563 in | 3.97 mm | Heavy offshore | Usually heavy ring or roller frame |
🔗Ring and frame matching
| Frame family | Typical ring | Line match | Best use | Sizing adjustment |
|---|---|---|---|---|
| Micro ceramic | 4-5 mm | Braid, fluoro | Light bass and finesse | Keep knots small |
| Standard ceramic | 5-8 mm | Mono, fluoro, braid | Most freshwater rods | Match or add 1 mm over runners |
| K style tip | 5.5-8 mm | Braid to leader | Tangle control | Add for leader knots |
| Fly wire | Loop or 4-6 mm | Fly line and leader | Fly rods and light builds | Prioritize low weight |
| Heavy ring | 8-16 mm | Mono, wire, braid | Catfish, surf, boat | Use longer tube if possible |
| Roller tip | 12-30 mm | Wire, heavy mono | Trolling and offshore | Use durable fit clearance |
🐟Species and rod reference
| Target use | Typical line | Blank tip OD | Common tube | Common ring |
|---|---|---|---|---|
| Panfish ultralight | 2-6 lb | 1.1-1.6 mm | 3.5-4.5 | 4-5 mm |
| Trout stream | 4-8 lb | 1.4-1.9 mm | 4.0-5.0 | 4-6 mm |
| Bass spinning | 8-15 lb | 1.7-2.3 mm | 4.5-6.0 | 5-7 mm |
| Walleye jigging | 6-12 lb | 1.5-2.1 mm | 4.5-5.5 | 4.5-6 mm |
| Inshore kayak | 10-30 lb | 2.0-2.8 mm | 5.5-7.0 | 6-8 mm |
| Surf casting | 20-50 lb | 2.6-3.6 mm | 7.0-9.5 | 10-16 mm |
| Pike casting | 30-80 lb | 2.4-3.4 mm | 6.5-9.0 | 8-12 mm |
| Offshore trolling | 50-130 lb | 3.2-5.0 mm | 8.5-13.0 | 12-30 mm |
💡Tip-top sizing notes
Tube fit: A tube that is one half-size too small will not seat safely. The calculator rounds the required inside diameter upward after cut-back, finish build, and clearance are added.
Ring match: The ring should be large enough for the largest leader knot and close enough to the running guide train that line flow does not jump at the tip.
Selecting an rod tip requires that a person consider many measurement of the rod tip and the rod itself. The rod tip has to be able to fit within the rod blank, and the fishing line has to be able to pass through the rod tip. If the rod tip is installed too tightly on the rod blank, it can crack the rod blank.
If the rod tip is installed too loosely on the rod blank, the rod tip will wobble when the rod is under a load; this will cause the fishing line to move out of alignment. A few very specific measurements of the rod tip and rod blank determines each of these outcome, many of which a person may not even consider until the rod tip or rod blank fail. The diameter of the rod tip of the rod are one of the main measurements that a person must consider when selecting a rod tip.
How to Choose the Right Rod Tip Size
The diameter of the rod tip is not the only measurement, however. If a person has cut a rod to remove a damaged section of the rod blank, the diameter of the tip will be larger then the original diameter of the tip due
