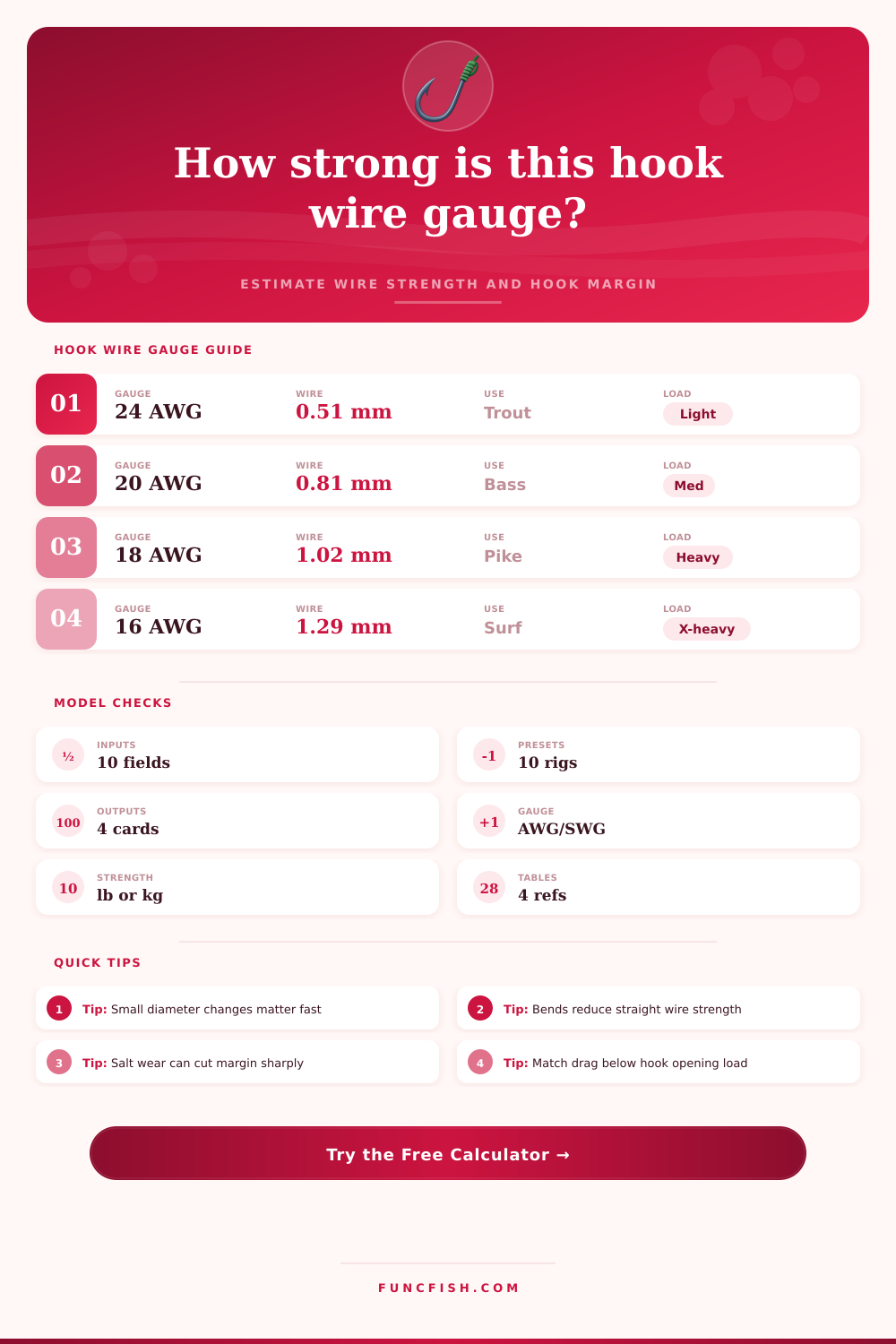

Hook Wire Gauge Strength Calculator

Estimate fishing hook wire diameter, straight tensile capacity, practical bend-opening load, line match, and safety margin from gauge, material, hook geometry, point loss, corrosion, drag, and target pull.

📌Hook wire presets

⚙Wire, hook, and load inputs

Wire gauge standard AWG and SWG are diameter standards, not hook-size labels.

Wire gauge number Lower gauge numbers mean thicker wire.

Manual wire diameter (in) Used only when manual diameter is selected.

Hook wire material Loads typical tensile strength ranges for hook wire.

Custom tensile strength (ksi) Only used for the custom material option.

Hook style and load path Geometry estimates the practical opening load.

Bend radius to wire diameter Tighter bends reduce the load needed to open a hook.

Point, barb, and eye loss Notches and formed eyes behave like stress raisers.

Wire condition Condition multiplier is applied after geometry reductions.

Temper and forging state Forging can improve bend resistance, while re-bending lowers it.

Line test (lb) Used for line-to-hook matching and drag advice.

Expected peak pull (lb) Peak pull includes drag spikes, surge, weeds, and boat angle.

Technique shock factor Raises the demand side of the calculation.

Target safety factor Compares practical hook opening load to expected peak demand.

Hook wire strength estimate

Practical opening load 0 lb bend-adjusted hook estimate

Straight wire capacity 0 lb area x tensile strength

Safety margin 0x versus shock-adjusted pull

Line match Balanced recommended drag window

Full breakdown

📋Calculated wire specs

0.81 mm Wire diameter

Gauge conversion used by the current setup.

0.52 mm² Cross-section

Circular wire area before any hook reductions.

210 ksi Tensile model

Material strength used for the straight wire.

7.1 lb Shock demand

Expected pull multiplied by technique shock.

This calculator estimates fishing tackle loads only. Do not use hook wire or these estimates for lifting, climbing, towing, hoisting, or any human-support application.

🔀Wire grade comparison

Fine trout wire 0 lb

Lower tensile and lighter bend profile for small flies, panfish hooks, and soft drags.

Standard carbon 0 lb

Balanced freshwater hook wire with normal bend radius and standard temper.

Forged heavy 0 lb

Higher bend resistance from forged geometry and heavy-wire hook design.

Salt stainless 0 lb

Corrosion-resistant wire, usually trading some peak tensile strength for durability.

📚Reference tables

Gauge reference	AWG diameter	SWG diameter	Typical hook use
26 gauge	0.405 mm / 0.016 in	0.457 mm / 0.018 in	Fine dry fly, tiny nymph
24 gauge	0.511 mm / 0.020 in	0.559 mm / 0.022 in	Trout, panfish, light bait
22 gauge	0.644 mm / 0.025 in	0.711 mm / 0.028 in	Light bass, walleye, jig hooks
20 gauge	0.812 mm / 0.032 in	0.914 mm / 0.036 in	Bass worm hook, inshore bait
18 gauge	1.024 mm / 0.040 in	1.219 mm / 0.048 in	Pike, catfish, surf bait hooks
16 gauge	1.291 mm / 0.051 in	1.626 mm / 0.064 in	Heavy surf, salmon, offshore bait

Wire material	Model strength	Best fit	Calculation note
Bronzed light wire	155 ksi / 1069 MPa	Small freshwater hooks	Good penetration, lower opening reserve
High-carbon hook wire	210 ksi / 1448 MPa	General freshwater hooks	Baseline for many J and worm hooks
Forged tempered carbon	245 ksi / 1689 MPa	Heavy cover and salmon hooks	High strength with better bend resistance
Stainless saltwater wire	175 ksi / 1207 MPa	Saltwater bait hooks	Corrosion resistance, moderate tensile model
Vanadium alloy wire	260 ksi / 1793 MPa	Premium thin strong hooks	High strength at smaller diameters
Tin plated salt hook	195 ksi / 1344 MPa	Surf and bait hooks	Coating helps corrosion but does not add core area

Hook geometry	Opening factor	Common wire	Reason for reduction
Standard J hook	0.42	Light to heavy	Bend opens before straight wire failure
EWG worm hook	0.36	Heavy bass wire	Wide gap creates more leverage
Circle hook	0.48	Heavy bait wire	Round bend distributes load well
Treble point	0.30	Light to standard	Individual point and small shank bend first
90-degree jig hook	0.38	Standard to heavy	Eye bend and shank angle add stress
Siwash open eye	0.40	Salmon and spoon hooks	Open eye and long shank add leverage

Fishing load case	Typical peak pull	Line range	Hook wire direction
Trout stream drift	1-4 lb / 0.5-1.8 kg	2-6 lb	Fine wire, sharp point, soft drag
Bass worm in grass	6-16 lb / 2.7-7.3 kg	12-25 lb	Heavy EWG or forged bend
Catfish bottom rig	12-30 lb / 5.4-13.6 kg	20-50 lb	Circle hook with thick carbon wire
Surf bait in wash	10-28 lb / 4.5-12.7 kg	20-40 lb	Salt-resistant heavy bait hook
Salmon spoon or siwash	12-35 lb / 5.4-15.9 kg	15-40 lb	Forged siwash, wide radius bend
Offshore live bait	25-80 lb / 11-36 kg	40-130 lb	Extra-heavy forged or stainless wire

💡Practical calculation tips

Tip: Treat the opening load as the useful hook number, not the straight wire number. The bend, eye, barb, and point cuts usually control what happens first.

Tip: A tiny diameter change has a large effect because cross-section area follows diameter squared. One or two gauges can change the match more than a coating or finish.

When’s the last time you got hung up in heavy cover and broke off with a big pull? Yeah, me too. It feels like something is wrong with your gear, but more times than not, it was a mismatch between what you thought your tackle could do and what laws of physics will permit. One of those unseen factors that make the difference between success and frustration on the water are hook wire strength. Once you know your hook style and gauge, the calculator above does all complicated math for you. You won’t ever need to wonder if that beefy-looking bait holder has the same strength as a fifty-pound test braided line or if it’s deceptively heavy duty.

Many of us have been conditioned to believe that thicker = stronger when it comes to fishing tackle. Unfortunatly, it’s not that simple. Material fatigue and shape change equation completely, making this an incomplete assumption that can be very dangerous. The other thing that throws folks off right away is that wire gauge goes backwards. Lower numbers mean thicker strands. So it’s not so much about buying direct strength as it is cross-sectional area. Strength increases exponentially, not linearly, to diameter. Double the thickness and you don’t double the strength. You quadruple it. Area goes by square of radius.

How Strong Is Your Fishing Hook?

So going from 24 gauge wire to 22 gauge are a huge increase in your reserve power. On paper it seems like such a minor jump, but when you’re fishing for pike around trees in water, that’s a night and day difference. The only catch is understanding what you’re really getting before you get on the water.

The material sets the performance ceiling; however, hook shape determines where that ceiling collapses. For fresh water applications, high carbon steel has great tensile strength because it can be heat treated to give maximum resistance to bending without making the steel brittle. In saltwater, stainless steel gives up some total strength as it corrodes its way from the exterior to the center. It’s a calculated trade-off, and one that’s needed. The materials’ properties is included in the calculation along with the geometry (shape) of each individual hook you select. Where a circle hook fails vs. A EWG worm hook vs. A standard J-hook and others all concentrate the stress differently. Straight wire breaks under load. However, wide gaps make it easier to open the hook than to break it at the bend.

Good build doesn’t always translate into good condition So while a new hook may be strong on paper, put it in salt water and its quickly a different story. Tiny little pits that occur when exposed to salt water will cause microscopic cracks similar to any other type of stress riser and expands under load. So yes you may fish a hook and never see any rust but if you don’t examine hooks carefully before reusing, your doing so at your own peril. The tool accounts for this fact through condition multipliers reflecting the truth: That a hook dug up off the beach after 3 weeks of surf fishing isn’t equal to the one out of the pack yesterday. And if you intend to use your safety margin to represent anything, then you must factor in that wear and tear.

Practice meets theory when it comes to matching the line test and opening load of your hooks. For instance, imagine you have a 15-pound hook that opens up on a shock load. If your drag settings is for a 20-pound line and your braid or mono tears off at twenty pounds, you’re going to be losing some fish. That’s what the safety factor output can help with as it compares the maximum likely peak pull versus modified strength of the hook. It shows you visually how much of a safety margin you have different than pushing the limits. In my experience, most lost fish in heavy cover isn’t due to the line being weak. Rather, the hook opened up before your drag could engage correctly.

All variables should be considered when choosing what combo works best. You need enough wire to withstand shock of first hit. You also need to be able to penetrate and cast without using too much wire. We use reference tables on page for this purpose. These pair common gauge sizes with common conditions and species. This gives you a starting point from which you can dial things in according to your specific scenario. It’s about making calculated choices based off confidence instead of hoping it’ll work.

Whether you get lucky or respect the physics, having confidence your tackle will hold up on that big one sure feels nice. Understanding how bend radius, material and diameter works together under pressure gives you that peace of mind. Don’t leave what you cannot calculate to chance; what you can control with calculation is a calculated risk. When the stakes are high, never leave anything to chance.
