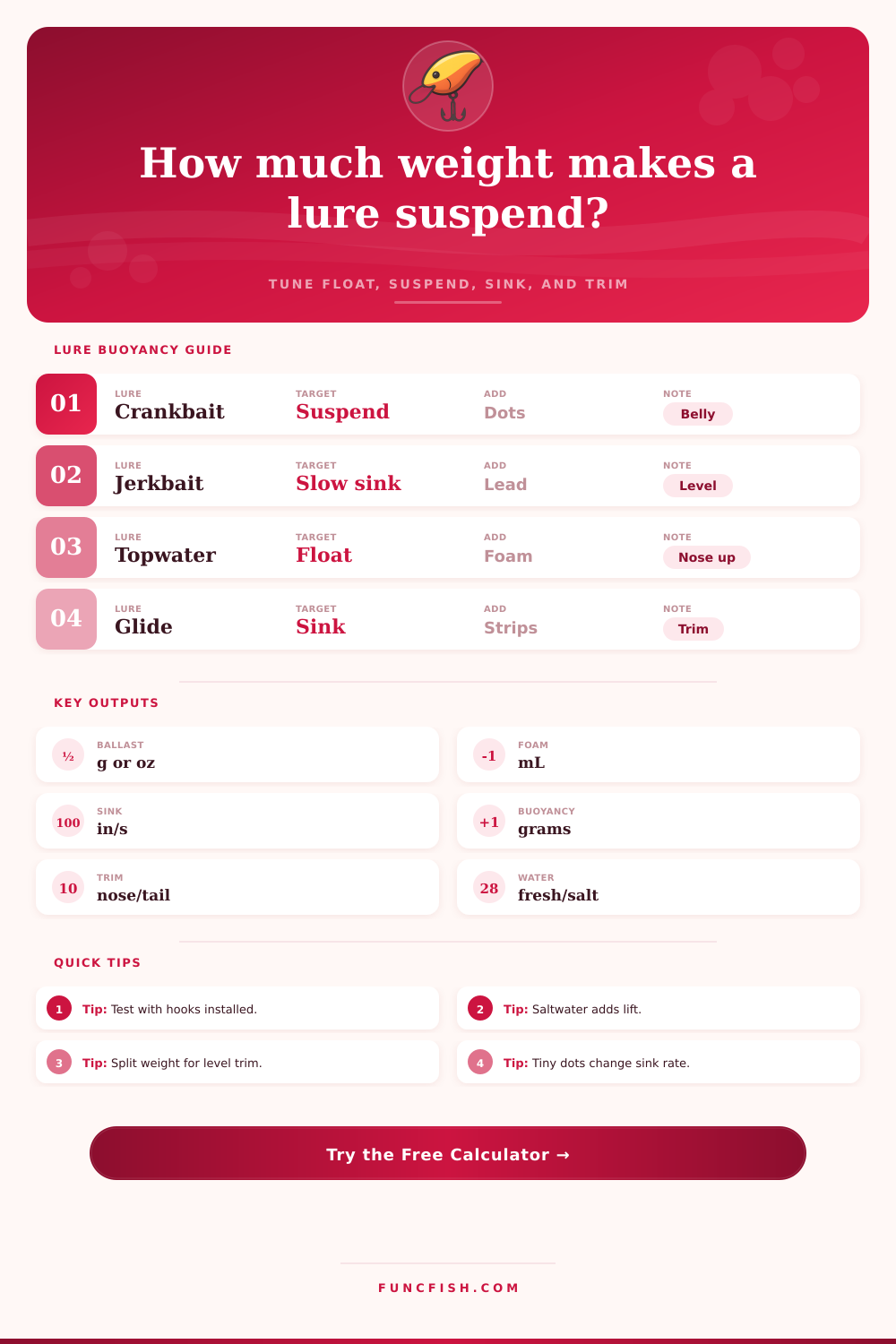

Lure Buoyancy Adjustment Calculator

Estimate ballast weight, foam volume, suspension margin, sink or rise rate, and nose-tail trim split from lure displacement, dressed weight, water density, body drag, hardware, and target action.

📌 Buoyancy tuning presets

⚙ Lure and water inputs

Lure body profile Loads typical drag, body fullness, and balance assumptions.

Target buoyancy behavior Target behavior sets the desired mass above or below neutral.

Water type Salt and cold water add measurable lift to the same lure.

Displacement method Measured displacement from a syringe or graduated cup is best.

Dressed lure weight (oz) Include hooks, split rings, bill, hardware, and paint.

Measured displacement (mL) Water volume pushed out by the fully dressed lure.

Lure body length (in) Used for dimensional displacement and sink-rate drag.

Maximum body width (in) Side-to-side body thickness, not hook width.

Maximum body depth (in) Top-to-bottom body height at the deepest section.

Body fullness factor (%) Corrects a rectangular dimension box into lure body volume.

Planned hardware change (g) Positive for heavier hooks or rings, negative for lighter hardware.

Target sink or rise rate (in/s) Use 0 for dead suspend, small values for slow rise or slow sink.

Drag coefficient Higher values slow the same excess weight in water.

Trim goal

This calculator estimates static buoyancy and low-speed sink behavior. Confirm final tuning in the actual water temperature with the exact hooks, split rings, line tie, and finish installed.

Buoyancy adjustment results

Ballast to add 0 g to hit target action

Foam volume needed 0 mL if lure is too heavy

Predicted rate 0 in/s after adjustment

Trim split 50 / 50 nose and tail share

Calculation breakdown

📊 Live tuning comparison

Freshwater neutral 0 g

Added mass needed to suspend in standard freshwater.

Saltwater neutral 0 g

Saltwater lift often requires more ballast for the same lure.

Slow sink tune 0 g

Approximate ballast for a controlled countdown action.

Slow rise tune 0 mL

Foam or volume needed when a lure is heavier than desired.

🧰 Tuning material grid

1.13 g 1/25 oz suspend dot

Good for crankbaits, jerkbaits, and tiny trim changes.

2.27 g 1/8 oz lead strip half

Useful when a slow float needs a clear countdown sink.

0.18 g/mL EVA foam insert

Adds volume with little mass for float recovery.

0.95 g/mL Soft plastic body

Often close to neutral, so hooks can dominate balance.

📋 Reference tables

Lure type	Typical displacement clue	Drag coefficient range	Best tuning point
Rounded crankbait	High air cavity for size	0.80 to 1.10	Belly dot near hook hanger
Minnow jerkbait	Slim volume, long body	0.65 to 0.95	Split ballast fore and aft
Topwater popper	High flotation margin	0.90 to 1.30	Tail or belly trim for angle
Glide bait	Broad profile, large side area	1.05 to 1.45	Centerline ballast below hinge
Metal jig	Low displacement, heavy body	0.45 to 0.80	Foam is rarely enough for float

Target action	Net mass target	Practical rate	Use case
Positive float	0.5 to 3 g light	Visible rise	Cover deflection and topwater recovery
Slow rise	0.1 to 0.8 g light	0.1 to 0.5 in/s	Cold jerkbait pauses
Dead suspend	Within 0.2 g neutral	Near zero	Pause presentations
Slow sink	0.1 to 1.2 g heavy	0.1 to 0.8 in/s	Countdown edges and grass tops
Fast sink	2 g or more heavy	1+ in/s	Deep pulls or bottom contact

Water condition	Density used	Effect on lure	Adjustment note
Warm freshwater	0.997 g/mL	Least lift in common freshwater	May sink slightly faster in summer
Cool freshwater	0.999 g/mL	Baseline freshwater tune	Good workshop reference
Brackish water	1.010 g/mL	Moderate extra lift	Add small ballast to keep suspend
Average saltwater	1.025 g/mL	Strong extra lift	Retune freshwater lures before use
Cold saltwater	1.028 g/mL	Highest listed lift	Expect the slowest sink rate

Trim goal	Nose share	Tail share	Behavior tendency
Level suspend	50%	50%	Flat pause and balanced twitch
Nose-down dive	65%	35%	Sharper bill bite or glide entry
Tail-down pause	35%	65%	Popper stance or wounded minnow look
Belly-center stability	50%	50%	Lower center of gravity, less roll

💡 Calculation tips

Measure displacement with the lure dressed. Hooks, split rings, feathered trebles, bills, and even heavy clear coat change both weight and water volume.

Tune in small steps. A single gram can move a small jerkbait from slow rise to slow sink, especially in cold saltwater or brackish water.

Buoyancy is not just about whether a lure floats or sinks. You purchase an expensive crankbait, but when you drop it in water, it sink instead of hovering over weeds. Because position of lure appears unnaturaly, the fish won’t touch it. This tuning process is something most anglers guess their way through by randomly adding hot glue and lead weights. When the lure dive down into mud, they becomes frustrated because they didn’t consider how much lift the treble hook provide.

The calculator converts displacement numbers into precise gram targets for foam or ballast. No more guessing what will work. Input volume of water your dressed lure displaces, its current weight, and environment you plan to fish in. Then the calculator lets you know precisely what amount of mass need to be added or removed to make it dead suspended, or hit a desired sink rate. It takes into consideration trim splits and drag factors so you know where to put the weights.

How to Fix Lure Buoyancy

The single biggest thing is measuring the displacement, which nobody do. You can’t tune what you don’t measure. Take your lures, fully dressed with hooks and paint. Immerse them in graduated cylinder filled with water and record change in amount of water. That’s your actualy data. Unless your lures are perfectly rectangular; and they never are, trying to eyeball the difference based off their measurements just doesn’t work. The tool accounts for that through its fullness factor; however, actual measurement trump theory every time.

“Buoyancy is altered by the density of the water. A lure might suspend in freshwater but could float in saltwater because salt adds lift. Cold water gives a lure lift and salt has lift to. Going from a lake in a summer to a river in October can cause a lure to act different than simply due to the change in water weight. The calculator automatically makes adjustments based on density so no need to memorize a table of specific gravities. Simply choose what environment it’s in and math does the rest.”

It will suspend level with the trim line. You don’t want bait diving on its nose, nor do you want it skipping across bottom. It has to look natural, which means level. And in clear water, sometimes you need that bait to pause tail down, which trigger strikes from fish suspicious of a flat profile. The tool figures out where to put the balance to keep it at correct angle. So if I want a glide bait to hold steady, I change the balance vs wanting a jerkbait to roll hard. In either case, that’s physics applied to fishing strategy.

A little goes a long way. A half-ounce dot will make big difference between a fast-sinking and slow rising lure. Resist urge to drill giant holes and scrape off big chunks of paint at once. You should of resisted the urge to ruin it. Before you head out on water, take lure for a spin in bucket. Still doesn’t feel right? Take away a little more foam or slap on an additional small weight.

Tuning takes time. Speed isn’t as important than accuracy. Milligrams make all difference between a miss or a catch. Knowing about how water density, drag and displacement work allows for working in concert with the equipement rather than against it. The bait goes where you want it to go. The fish sees what you want it to see. Once that bait hits strike zone, the battle is on.
